Objective: The aim of this study was to test pre-operative ultrasound mapping for the detection of duplications and narrow vein segments of the greater saphenous vein (GSV) used as bypass for occlusive arterial disease surgery. Patients and methods: In 44 patients pre-operative ultrasound findings of duplications and lumen assessment of the GSV were compared to the per-operative findings. Results: In nine patients (20%) the pre-operative ultrasound examination showed a duplication. Pre-operative ultrasound had missed a duplication in two cases but had instead shown a narrow segment in both. The pre-operative ultrasound assessment of lumen diameter showed a narrow lumen segment in 10 of the 44 patients. In one patient a per-operatively narrow lumen had not been seen on pre-operative ultrasound. Conclusion: Pre-operative ultrasound mapping of the GSV is a sensitive tool for detection of duplications and narrow vein segments. Since these anatomical variations provide important information for the vascular surgeon, before performing a 'closed' in situ bypass operation, pre-operative vein mapping should be considered when planning such a procedure.

ultrasound studies, saphenous vein, veins, greater saphenous, veins, surgery, veins, US study
dx.doi.org/10.1016/S0720-048X(96)00776-0, hdl.handle.net/1765/63030
European Journal of Radiology
Department of Surgery

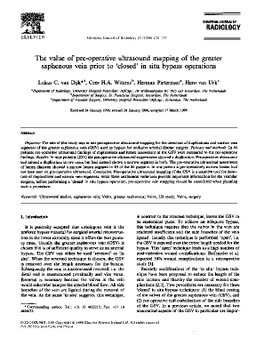

van Dijk, L.C, Wittens, C.H, Pieterman, H, & van Urk, H. (1996). The value of pre-operative ultrasound mapping of the greater saphenous vein prior to 'closed' in situ bypass operations. European Journal of Radiology, 23(3), 235–237. doi:10.1016/S0720-048X(96)00776-0
